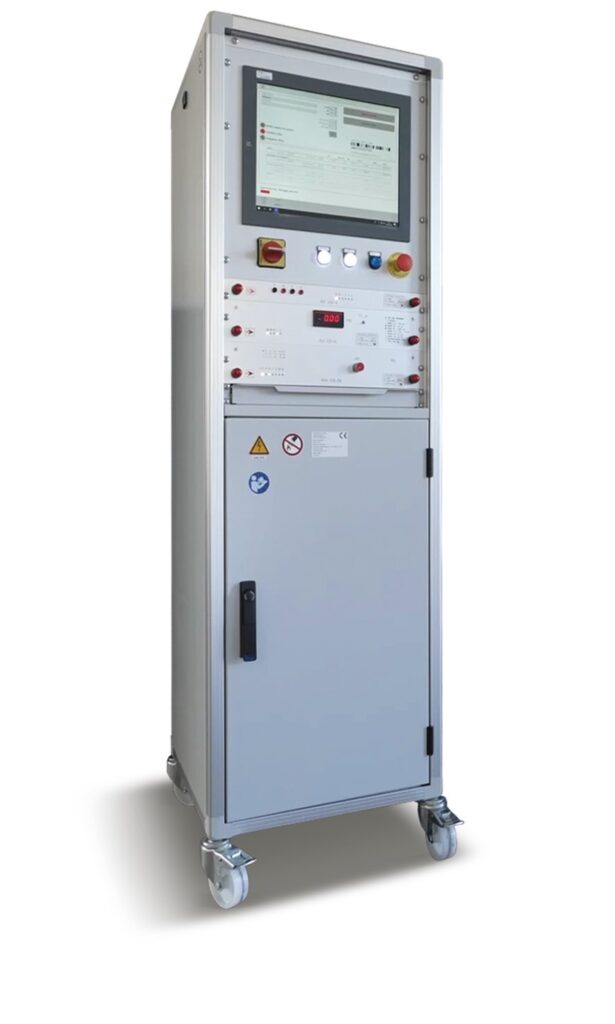

Testing system for stators and motors

Characteristics

Electrical safety tests (HV, insulation resistance)
Winding resistance test
Test surge (up to 5000V)
Measurement of electrical parameters
Manual voltage setting or PC/PLC controlled power supply
Test time: depending on the production line interface and jigs
Connection with the MES Connection with PC or PLC that controls the production line
All test recipes can be managed by the test bench software control
Three-phase version available as an optional
Check direction of rotation

The test bench is designed for integration into automatic production lines and is able to manage all the functions listed above and others on request.
