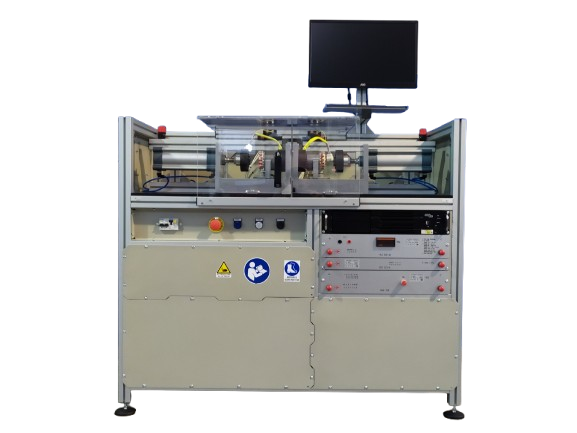

Multifunctional stator test bench
Characteristics
- Electrical safety tests (high voltage, insulation resistance)
- Winding resistance test
- Surge test
- Measurement of electrical parameters
- Manual voltage setting (PLC controlled power source is optional)
- Double station
- Test time: 8..10s
- Ready for I4.0
Customer Needs
Performing all electrical safety and quality tests and forming of winding heads with a single device with a test time of approximately 8..10 seconds
Solution
We have developed a dual-station test bench with non-simultaneous operation.
A cradle with a pneumatic forming and wrapping system is mounted on each station. A rack column contains All the instrumentation , together with the PC and the electrical part . All the results are transmitted to the external server. Production analysis software based on a local database has also been integrated.
