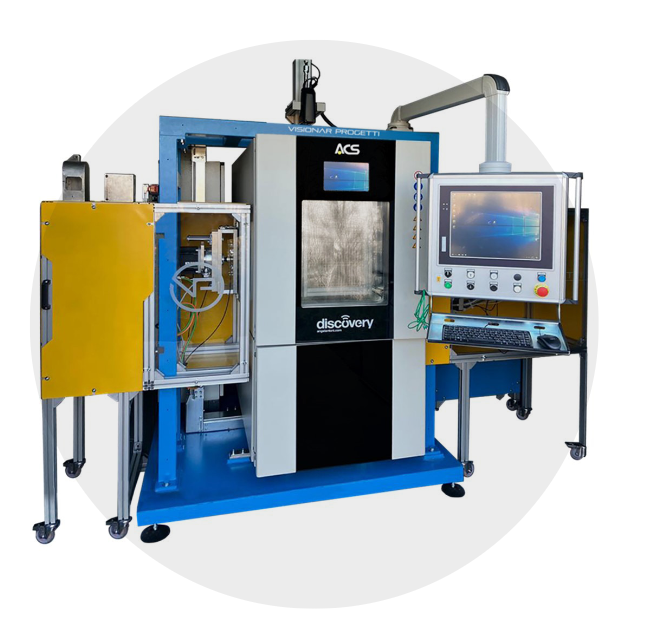

Flexible transmissions ultra dynamic test bench
Characteristics
- To test flexible drives (timing belts) for durability
- To manage tests according to the specifications of different customers
- To handle very high acceleration and deceleration dynamics
- To handle tests with temperature ranges from -40 to 120°C and humidity
Customer needs
The client is a leading manufacturer of automotive transmissions. It requires compliance with many of its customers’ specifications, including test temperature ranges, speed-versus-time profiles, and pulley inertia.
Solution

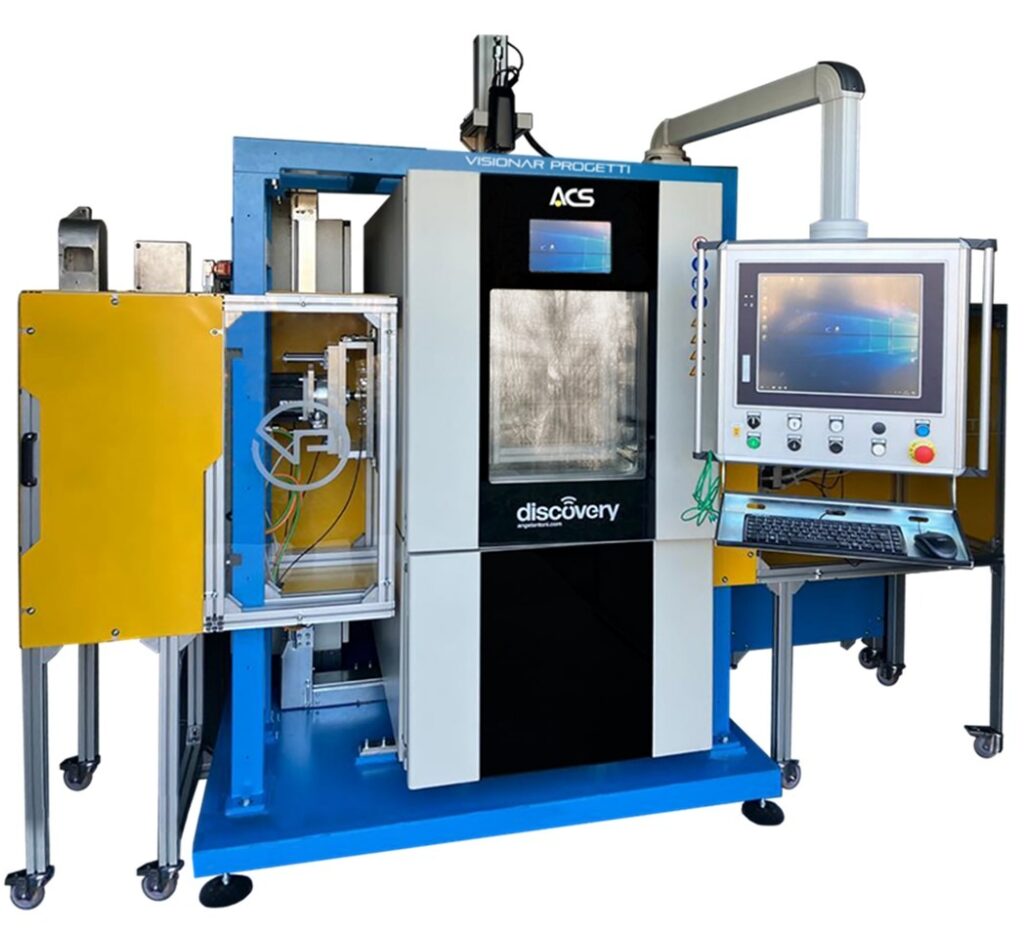

We developed a custom test bench integrated with a climate chamber. The mechanical and control solutions were preliminarily developed with dynamic and structural simulations. Some highly dynamic tests required the development of a custom electric brake to meet the specifications (e.g., to stop pulleys and belts in a few milliseconds).
