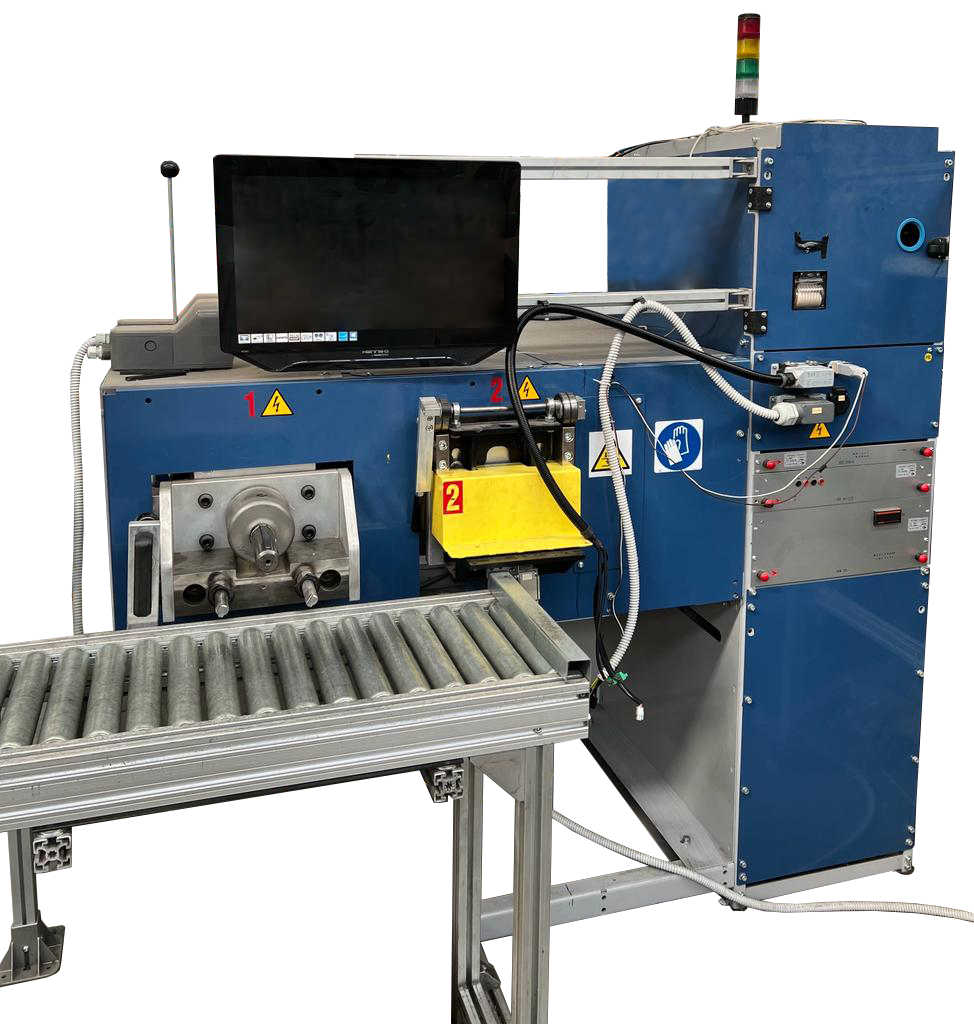

Measurement and control system for gearmotors
Characteristics
- Torque-rpm test (30-1800Nm; 8-250rpm)
- Electrical safety test (HV, earth wire)
- Winding resistance test
- Control system functional tests
- Can also be used as a laboratory bench for prototype characterization
- Adjustable power supply: single-phase 120-230V, three-phase 230-500V, 50 and 60Hz
- Configurable system for testing a large number of final product codes
Customer Needs
Test a large number of product variants with a very wide torque range and characterize them from a performance point of view
Solution
electromechanical system with an innovative transmission system actuated by a 4-quadrant controlled motor-brake and a multifunctional management software.
