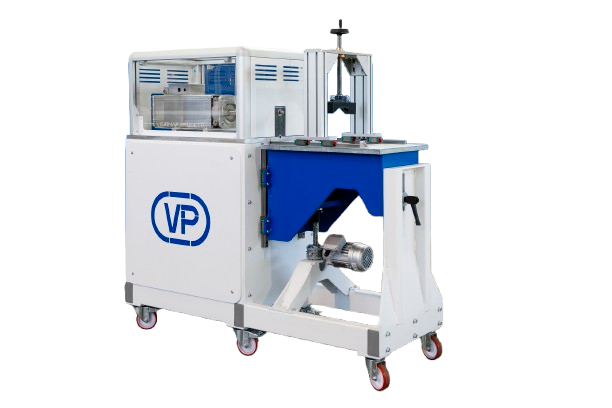

Multifunctional laboratory

Characteristics

Torque – rpm test
Power-rpm test
Motor efficiency test
Motor controller efficiency test
Measures winding temperatures in
Measures winding temperatures in real time at the operating point for DC motors electronic
Measure of the Rotor magnetic field profiles for magnet motors permanent
Measure of the BEMF
Industry 4.0

Customer Needs

For performance and safety testing of shaded pole, PSC, brushless BLDC, and PMSM motors; range 0-20Nm, 0-8.000rpm.

Solution

We have developed a 4-quadrant controlled test bench capable of performing braking and drag tests with very accurate torque sensing and with all the additional features outlined.

Characteristics

Customer Needs

Solution
