ISO5801 Fan Pressure Flow Measurement System (or AMCA210)

Characteristics

Flow rate
Pressure (total and static)
rpm
Electrical power, voltage and current
Measurement of torque absorbed by the fan (fluid dynamic efficiency)
Tests at constant rpm and constant duty cycle (for brushless motors)
Standardized measurements according to ISO5801
Adjustable power supply: single-phase 120-230V, three-phase 230-500V, 50 and 60Hz
Connection with performance simulation software

Customer Needs

Having a laboratory bench to characterize fans for different applications and of different types, evaluate efficiency and distinguish between fluid dynamic efficiency and motor efficiency, and be able to carry out temperature tests on the windings under working conditions similar to real use

Solution

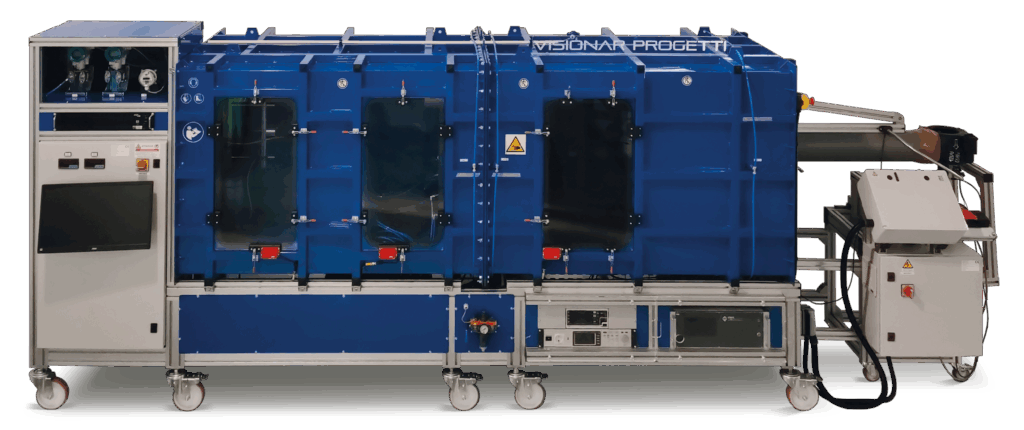

A performance test bench was built in accordance with ISO 5801. An external drive allows the fluid dynamic efficiency of fans or systems to be characterized.

A simulation software has been developed that, by taking as input the torque produced by alternative (or simulated) engines, allows the performance prediction of virtual prototypes; Tests can be run automatically or manually .

Characteristics

Customer Needs

Solution
